WIFI Sauna Controller for Wholesale Supply
This WIFI sauna controller is offered for retailers, distributors and sauna project buyers. The documented system uses a touch-screen control panel, mobile-app remote control, a door switch, a selected power unit and a separate temperature sensor for compatible sauna-heater installations.
The technical values below apply only to the reviewed controller configurations and must not be generalized to other controllers or heater systems.
Verified Control Panel Specification
| Temperature regulation range | 40-110°C |
|---|---|
| Control panel dimensions | 103 × 125 × 27 mm |
Documented Power Unit Configurations
| Power unit | 230 V 1N~ maximum load | 400 V 3N~ maximum load |
|---|---|---|
| CL32WF-C WIFI | 9 kW | 18 kW |
| CL50WF-C WIFI | 9 kW | 30 kW |
| CL40WF-R WIFI | 9 kW | 12 kW |
The maximum load depends on the selected power unit and electrical configuration. Buyers must confirm voltage, phase, load and compatible heater specification before ordering.
Power Unit and Sensor Dimensions
| CL-C power unit dimensions | 340 × 300 × 130 mm |
|---|---|
| CL-R power unit dimensions | 270 × 273 × 80 mm |
| Resettable overheat protector | 150°C |
| Temperature sensor dimensions | 50 × 72 × 28 mm |
Controller System Scope

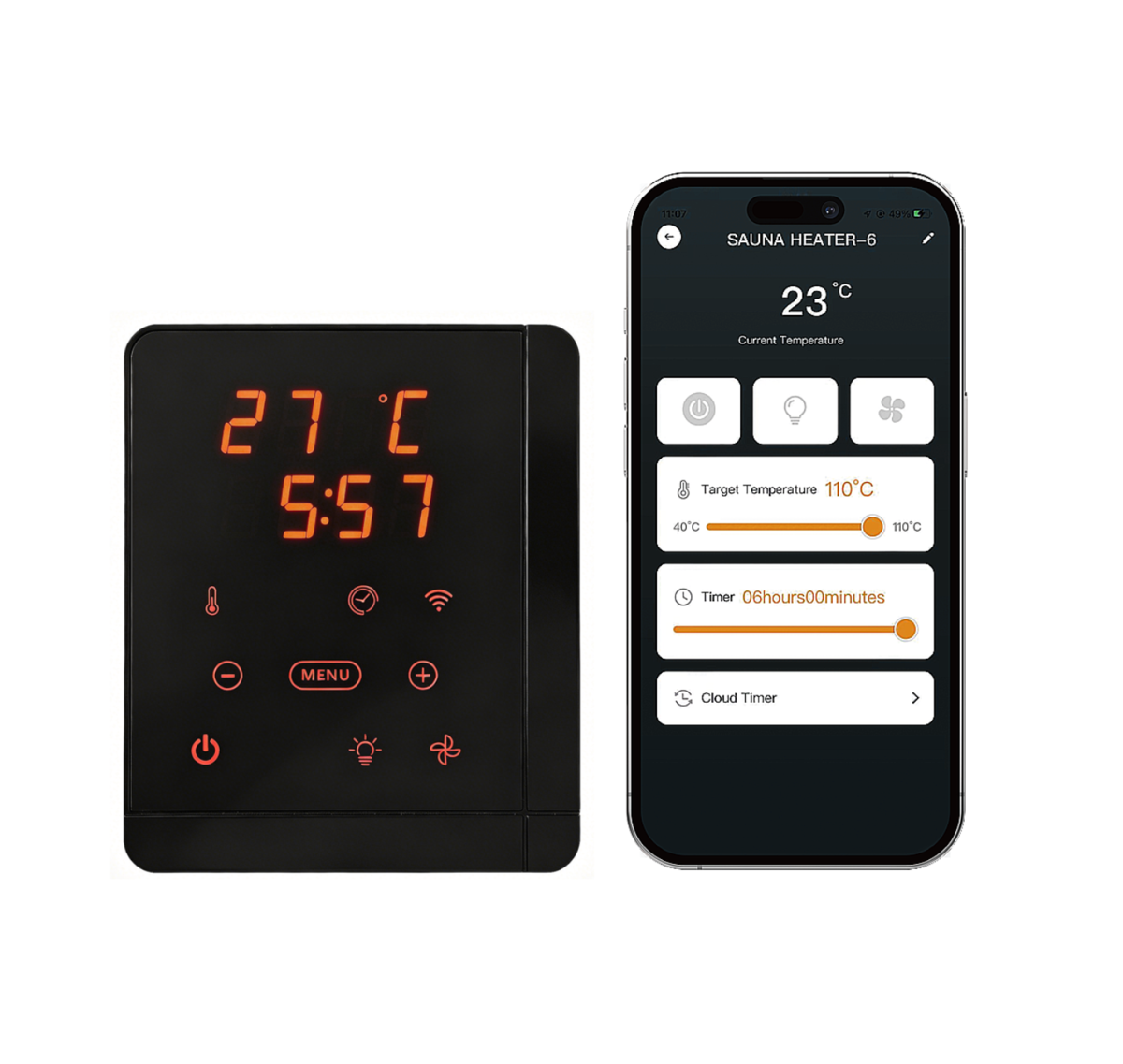

The reviewed WIFI controller supports adjustment from the touch-screen control panel or the documented mobile app and includes a door switch. Remote operation depends on the applicable WIFI connection and current app environment.
The sauna heater is not included. Product images are visual references and do not establish inclusion of a heater or compatibility with every sauna heater.
Electrical and Installation Boundaries
The controller is documented only for the power-unit configurations shown above. No other voltage, phase, frequency or maximum-load value is implied.
Wiring, sensor placement, compatibility and installation requirements depend on the selected heater and project. Confirm the applicable documentation and use appropriately qualified installation personnel; this product description is not an installation guide.
Order Confirmation
Before ordering, confirm the selected power unit, electrical configuration, connected heater load, controller-system components and current product specification in writing.
Request a Sauna Controller Quote
Contact Mai Sauna to confirm the required controller and power-unit configuration, compatibility information, current specification and B2B quotation.
