Complex Mini 3kW Sauna Heater with Built-In Controls
The Complex Mini 3kW Sauna Heater is a compact electric sauna heater offered for retailers, distributors and smaller sauna projects.
The documented configuration is rated at 3 kW for a recommended sauna-room volume of 2–4 m³ and includes a built-in timer and thermostat.
The heater supports both floor-standing and wall-mounted placement according to the documented product arrangement.
Selection should be based on the actual sauna-room volume, construction, electrical supply, placement and local project requirements.
Documented Configuration
| Specification | Documented Configuration |
|---|---|
| Power | 3 kW |
| Recommended Room Volume | 2–4 m³ |
| Control | Built-in timer and thermostat |
| Floor-Standing Dimensions | 320 × 265 × 600 mm |
| Wall-Mounted Dimensions | 340 × 265 × 650 mm |
| Heater Weight | 13.82 kg |
| Stone Capacity | 10 kg |
| Placement | Floor-standing / Wall-mounted |
| Available Finish | Black / Steel |
The specifications above describe the reviewed product configuration. Final electrical requirements and supplied components should be confirmed before ordering.
Built-In Timer and Thermostat
The documented Complex Mini configuration includes built-in timer and thermostat controls.
This distinguishes it from the Complex Mini-E configuration, which uses an external control arrangement.
Electrical rating, control operation, installation clearances and compatibility should be confirmed for the exact selected heater and project.
Floor-Standing and Wall-Mounted Placement
The Complex Mini supports two documented installation arrangements.
The reviewed floor-standing configuration measures approximately 320 × 265 × 600 mm, while the wall-mounted arrangement measures approximately 340 × 265 × 650 mm.
The appropriate arrangement should be selected according to the sauna-room layout, heater position and applicable installation requirements.

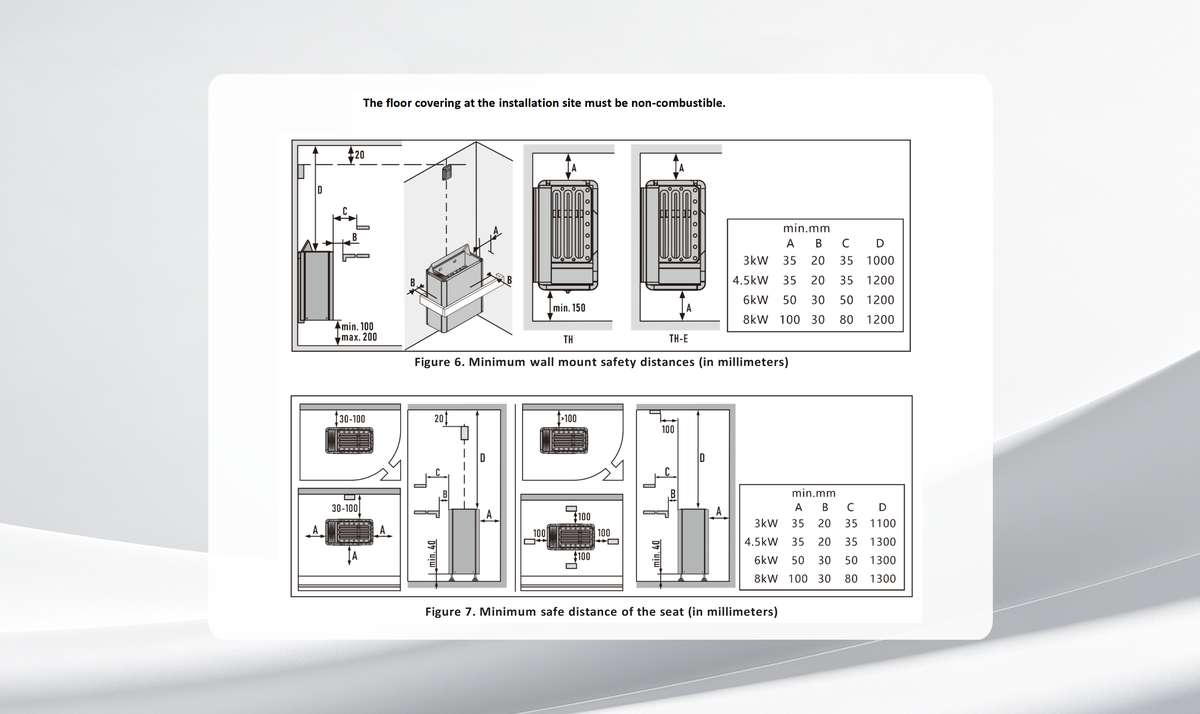

Final safety clearances and surrounding construction requirements must follow the applicable technical documentation.
Compact Electric Sauna Heater Design
The Complex Mini uses a compact rectangular heater body and is available in black and steel finishes according to the reviewed product information.
The documented heater weight is 13.82 kg, with a 10 kg stone capacity.
Its compact body and multiple placement options make it suitable for smaller sauna-room projects where installation space needs to be considered carefully.
Project and Installation Requirements
The Complex Mini is part of Mai Sauna’s sauna heater range for overseas retailers, distributors and project buyers.
Room sizing, electrical supply, placement, safety clearances and installation requirements depend on the selected configuration and project.
Installation, inspection, servicing and component replacement should follow the applicable technical documentation and be performed by appropriately qualified personnel.
Product images are visual references. Sauna stones, installation components and other pictured items are included only when specifically listed in the written quotation.
Request a Quote
Contact Mai Sauna to confirm the required Complex Mini Heater configuration, placement, included components and current B2B quotation.

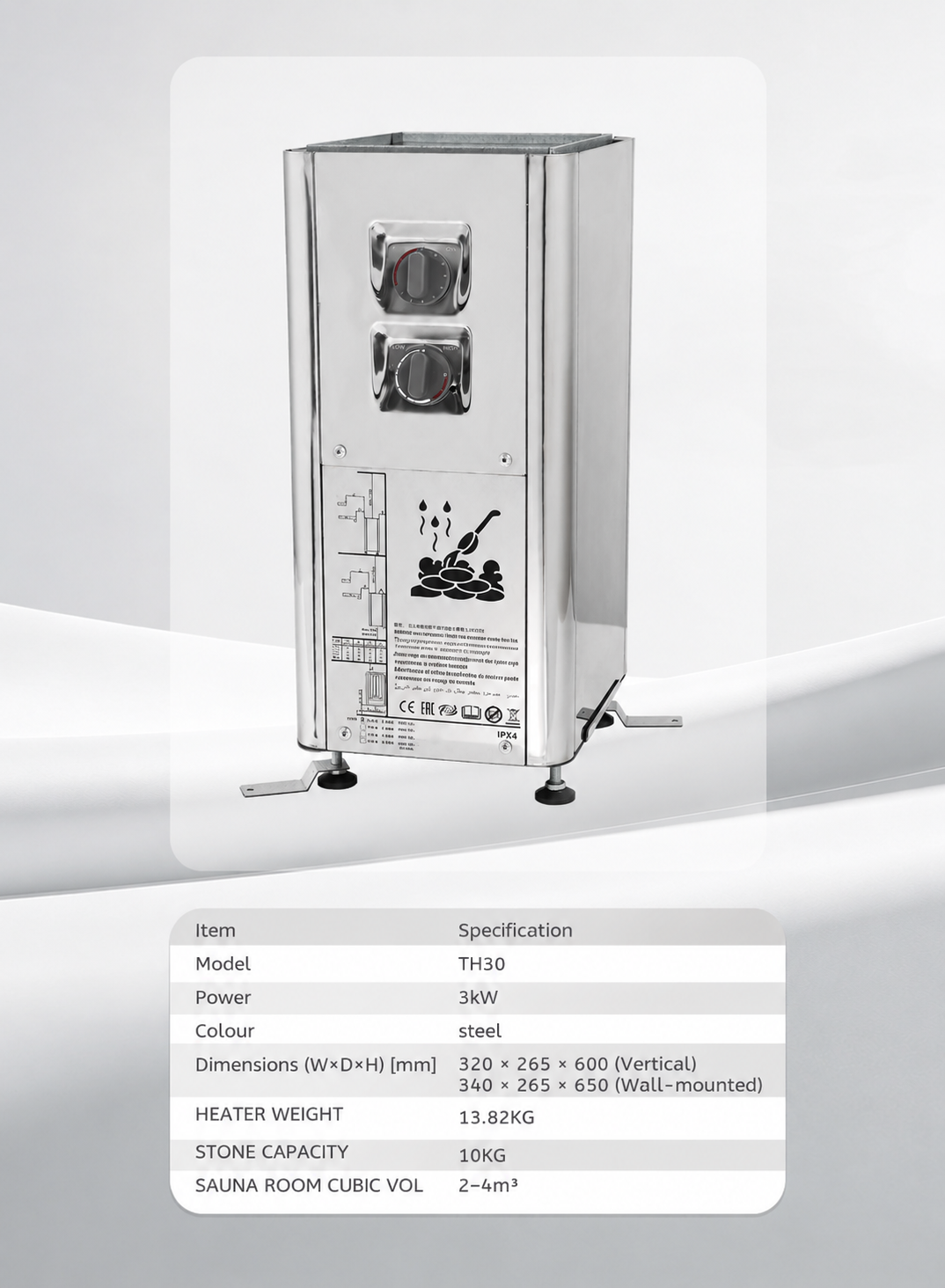

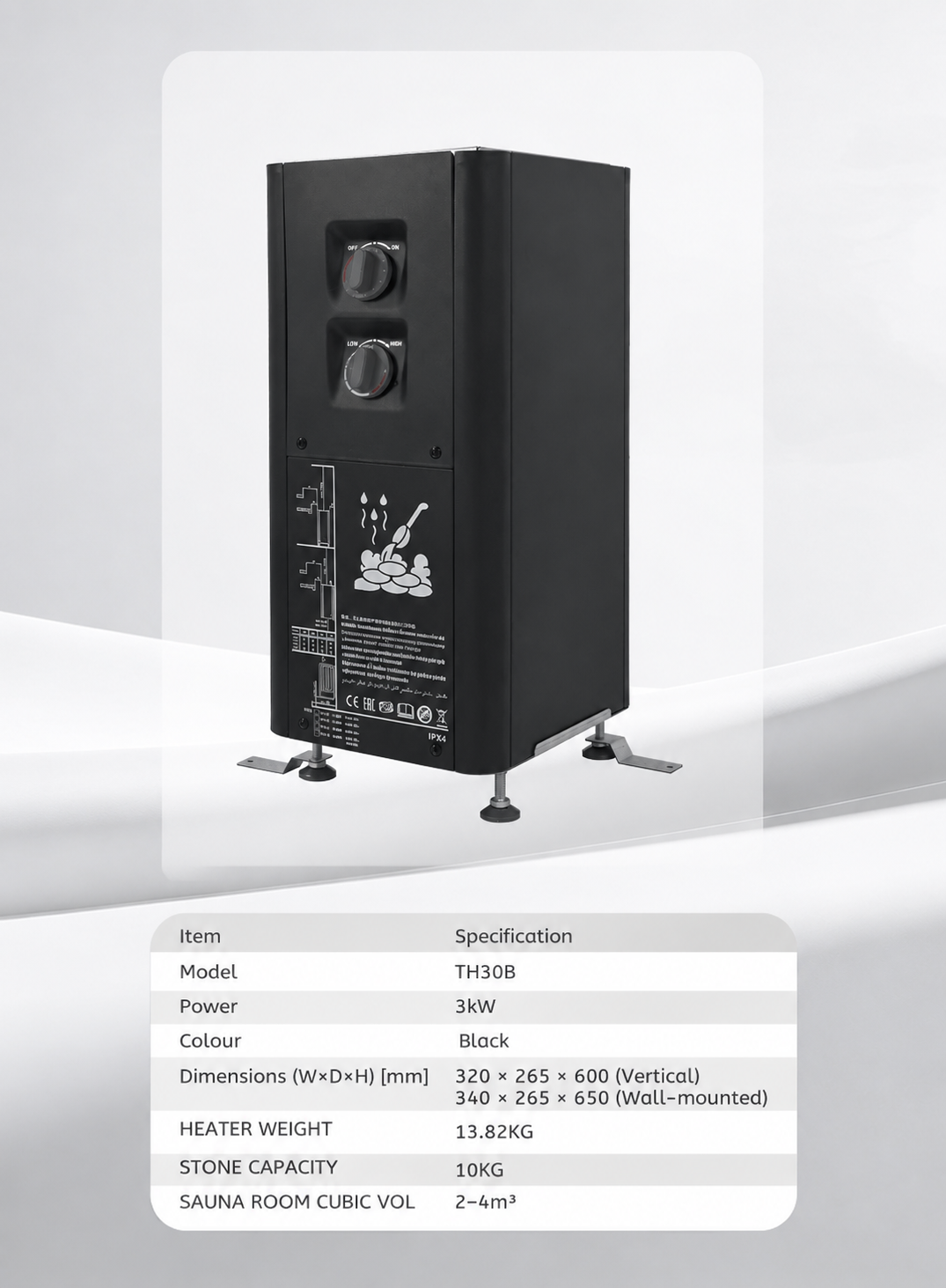

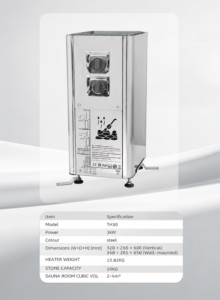

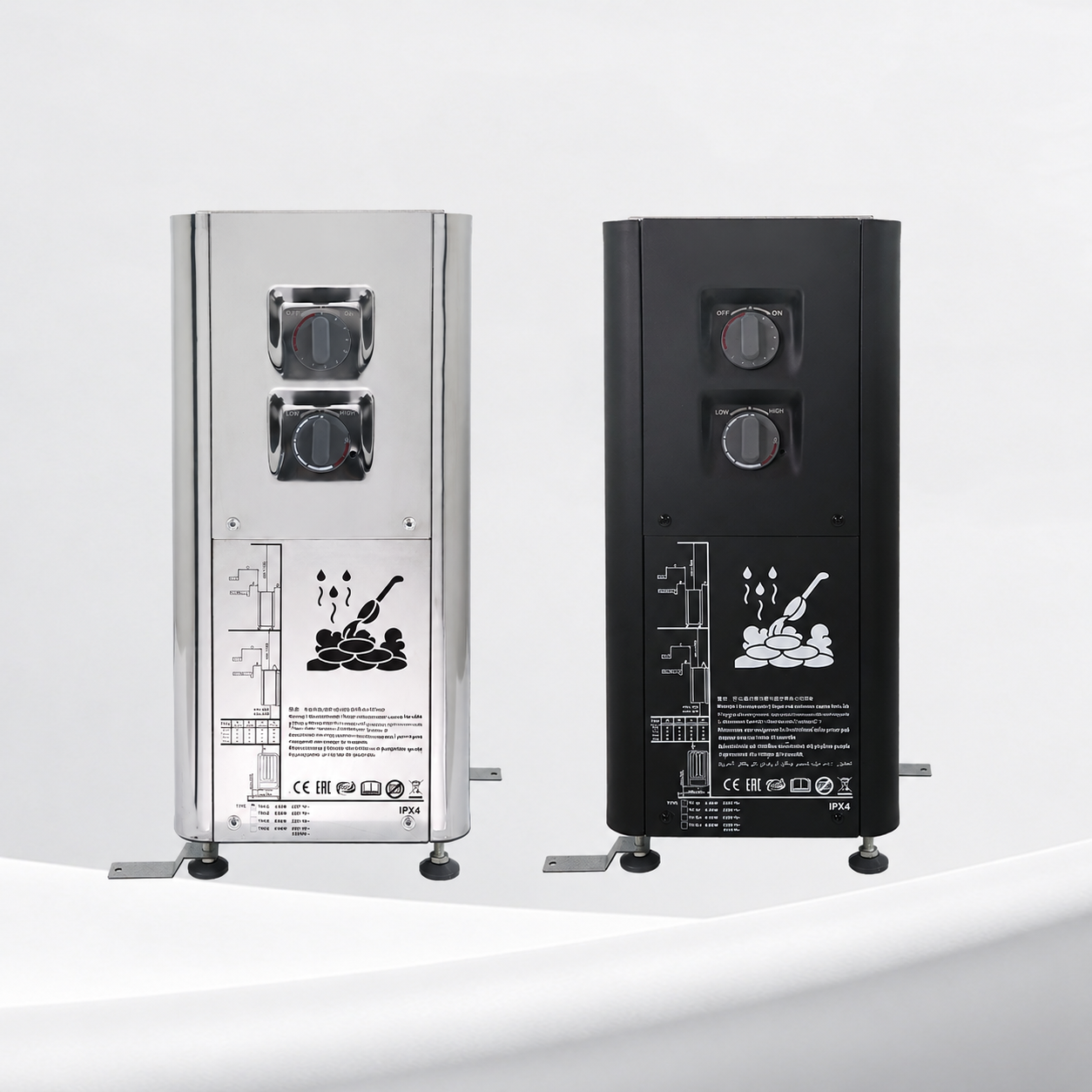

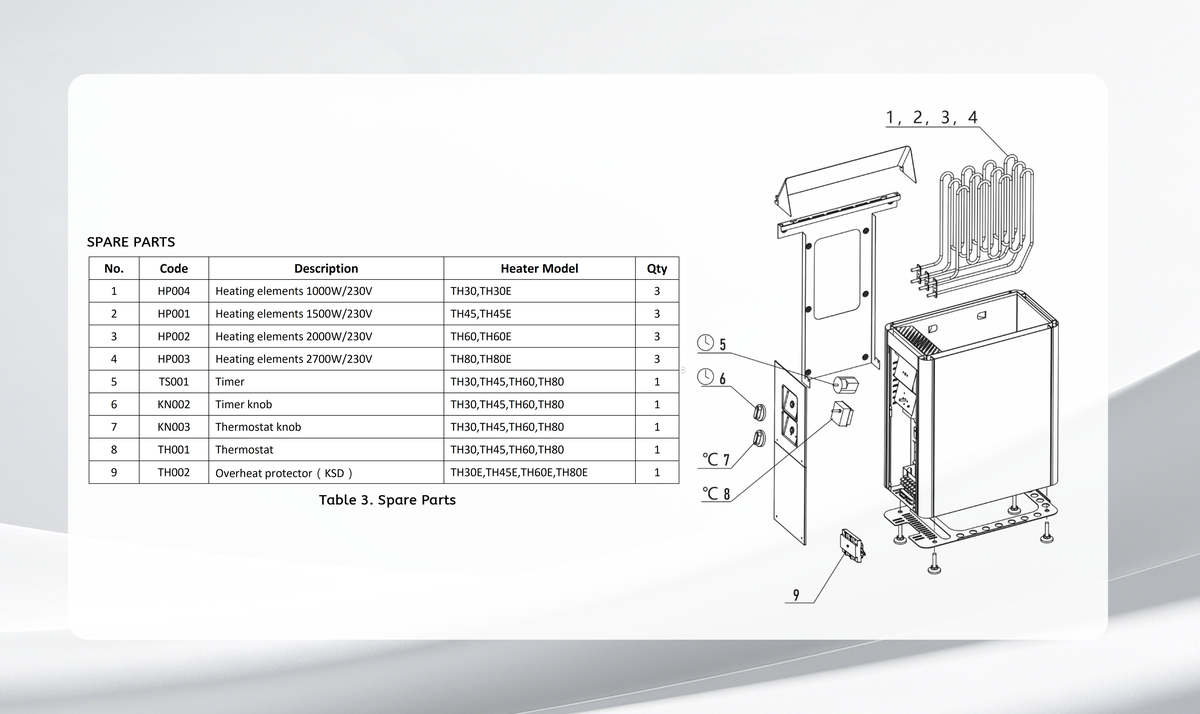

Product Reference Images
