Complex Sauna Heater with 4.5–8 kW Options
The Complex Sauna Heater is an electric sauna heater offered for retailers, distributors and sauna-room projects.
The reviewed product information documents 4.5 kW, 6 kW and 8 kW power options together with built-in controls.
Both floor-standing and wall-mounted installation configurations are available according to the reviewed product information.
The selected power and installation arrangement should be confirmed according to the actual sauna-room requirements, electrical supply and project conditions.
Documented Power Options
The reviewed Complex Heater range includes the following documented configurations:
| Power | Recommended Room Volume | Control |
|---|---|---|
| 4.5 kW | 3–6 m³ | Built-in controls |
| 6 kW | 5–8 m³ | Built-in controls |
| 8 kW | 7–11 m³ | Built-in controls |

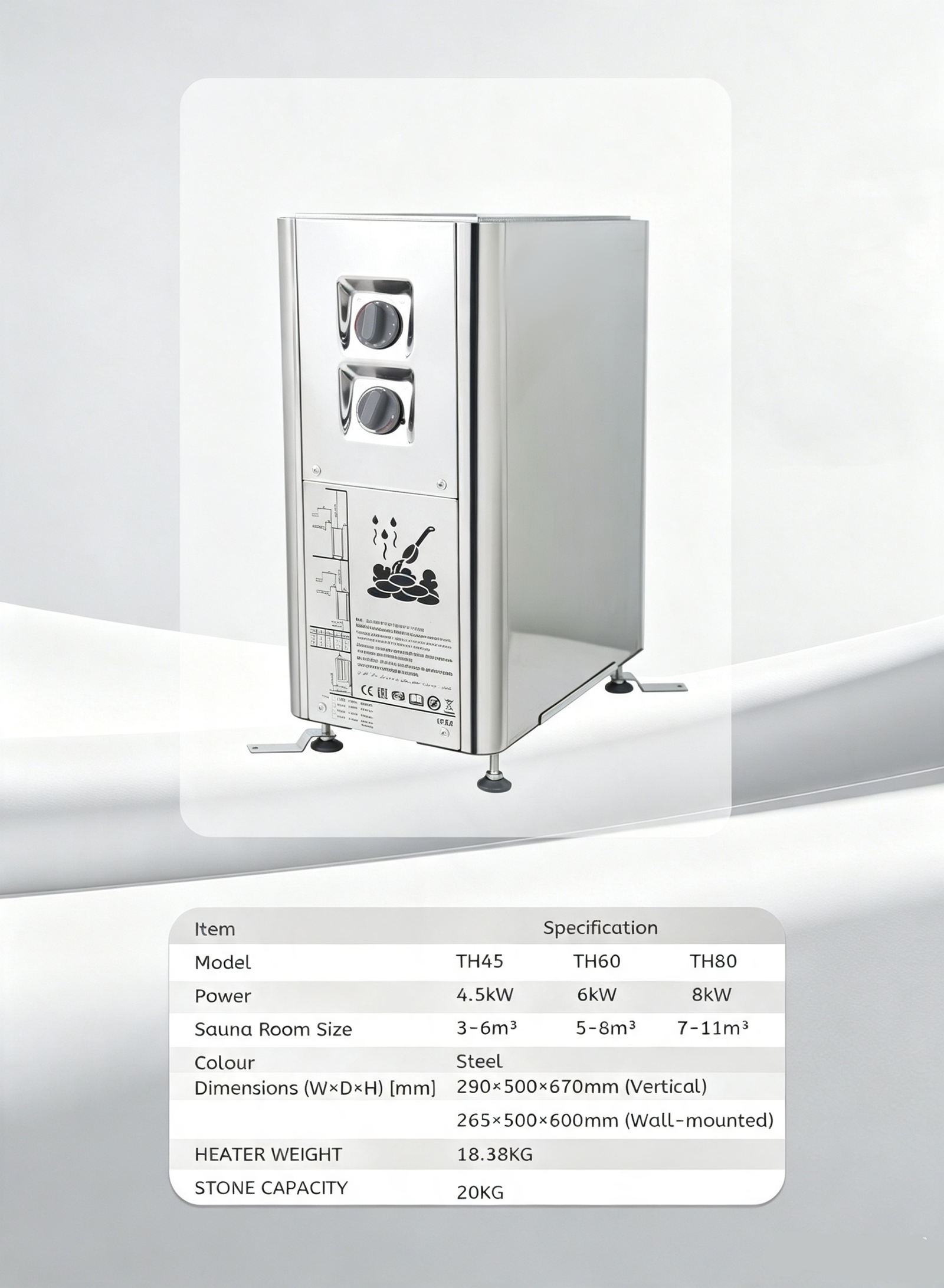

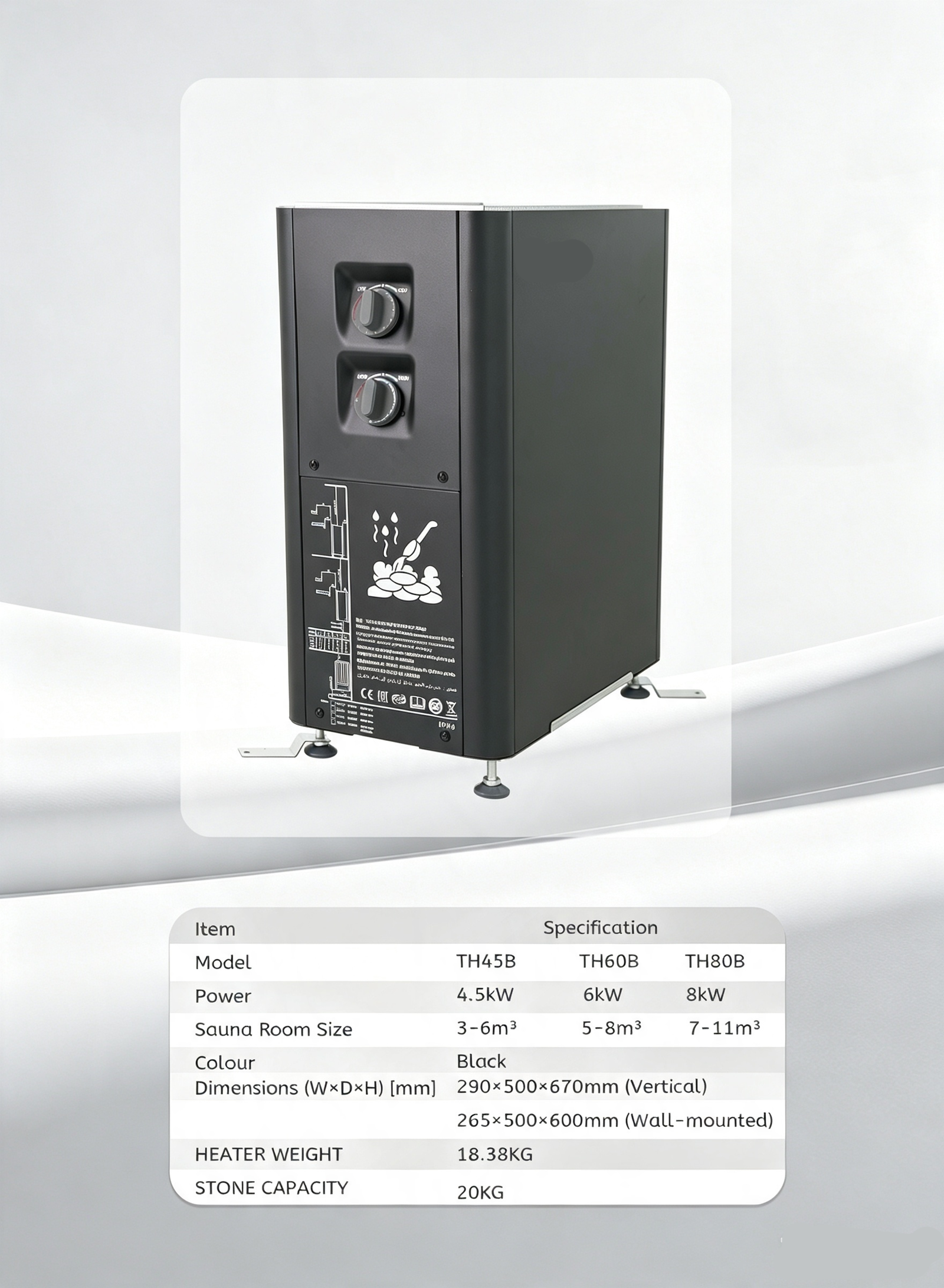

The reviewed configurations also include the following documented specifications:
| Specification | Documented Value |
|---|---|
| Floor-Standing Dimensions | 290 × 500 × 670 mm |
| Wall-Mounted Dimensions | 265 × 500 × 600 mm |
| Heater Weight | 18.38 kg |
| Stone Capacity | 20 kg |
| Finish | Black / Steel |
Final electrical requirements and supplied components should be confirmed for the selected configuration before ordering.
Built-In Controls
The documented Complex Heater configuration uses built-in timer and thermostat controls for direct heater operation.

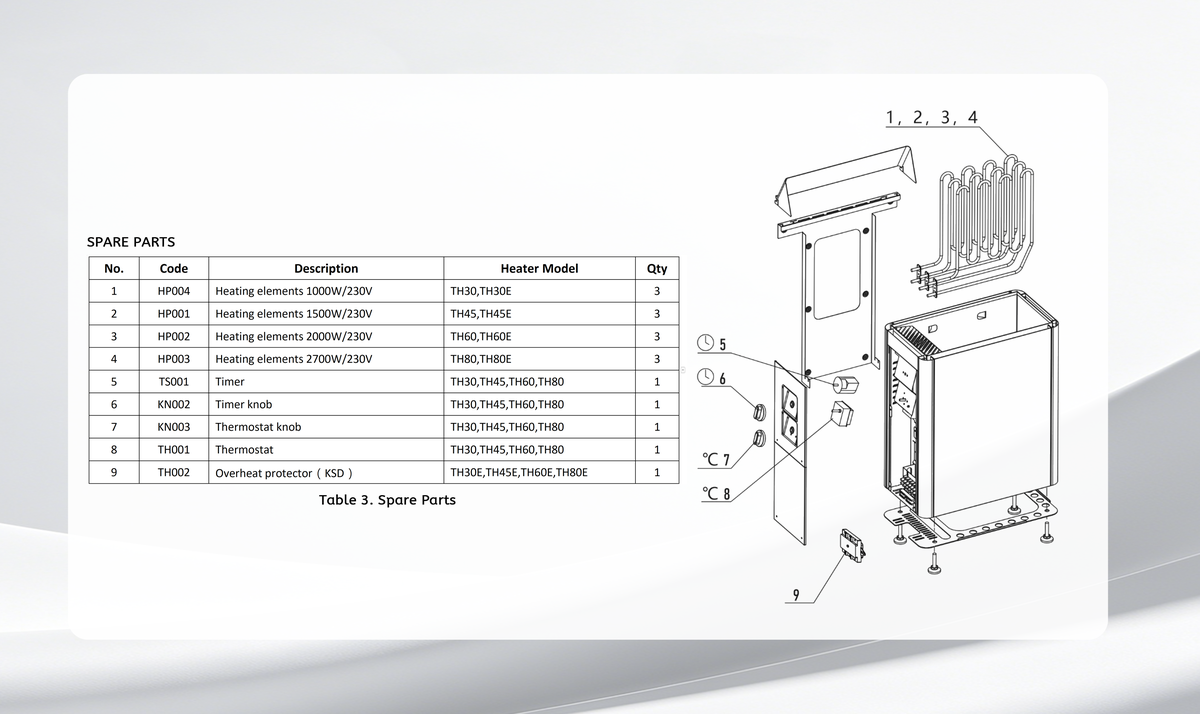

The reviewed product documentation also identifies an overheat-protection component.
Control operation, electrical compatibility and servicing requirements should be confirmed according to the selected model and applicable technical documentation.
For projects requiring external control, the Complex-E Sauna Heater provides a separate 4.5 kW, 6 kW and 8 kW configuration.
Floor-Standing and Wall-Mounted Installation
The Complex Heater supports both floor-standing and wall-mounted installation arrangements.
The reviewed floor-standing configuration measures approximately 290 × 500 × 670 mm, while the wall-mounted arrangement measures approximately 265 × 500 × 600 mm.
The appropriate installation method should be selected according to the sauna-room layout, heater position, surrounding construction and applicable technical requirements.

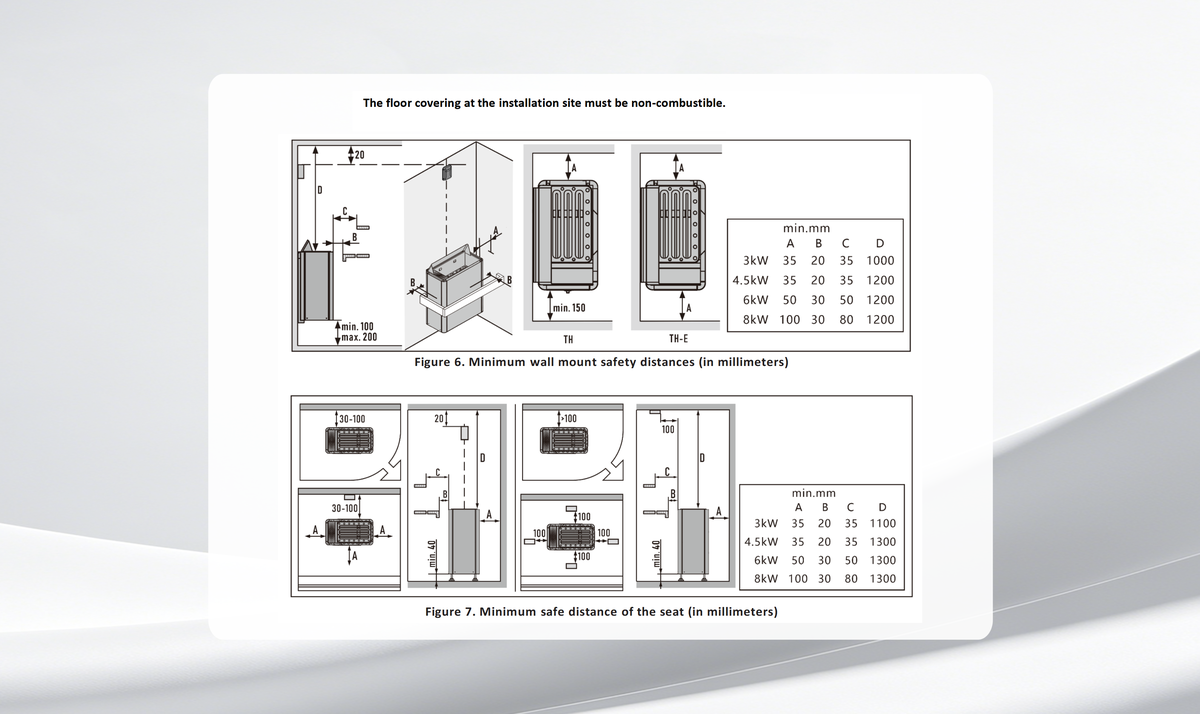

Final mounting hardware, safety clearances and installation requirements should be confirmed before installation.
Stone Capacity and Product Finish
The reviewed Complex Heater configuration has a documented 20 kg stone capacity and a heater weight of approximately 18.38 kg.

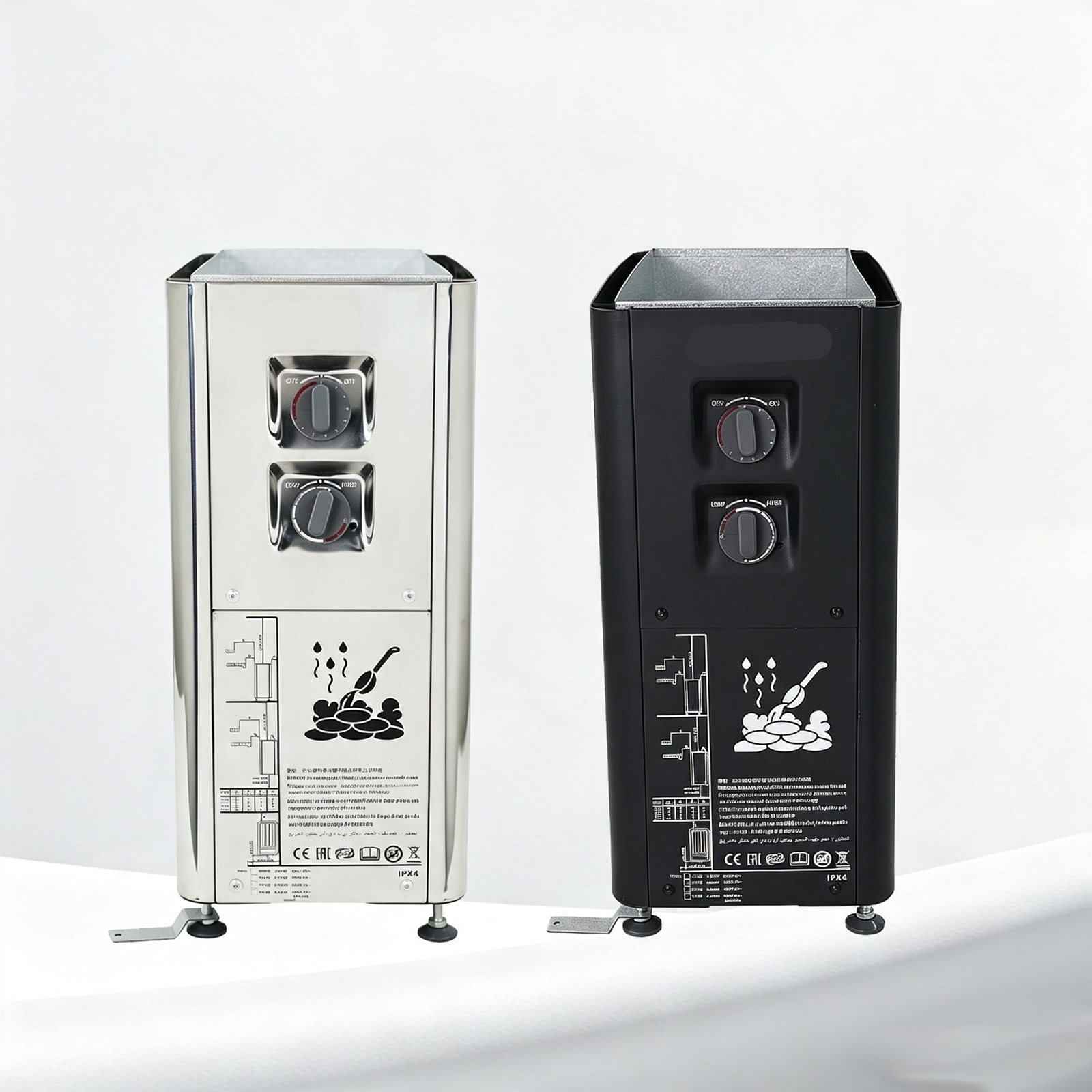

Black and steel finishes are shown in the reviewed product information.
The final finish and included components should be confirmed according to the selected configuration and written quotation.
Project and Installation Requirements
The Complex Heater is part of Mai Sauna’s sauna heater range for overseas retailers, distributors and project buyers.
Power selection should be based on the actual sauna-room volume and overall project requirements rather than power rating alone.
Electrical supply, installation arrangement, safety clearances and supplied components depend on the selected heater configuration and project requirements.
Installation, inspection, servicing and component replacement should follow the applicable technical documentation and be performed by appropriately qualified personnel.
Product images are configuration references. Sauna stones, mounting hardware, guards, controllers and other pictured items are included only when specifically listed in the written quotation.
Request a Quote
Contact Mai Sauna to confirm the required Complex Heater power option, recommended room volume, installation arrangement, electrical requirements, included components and current B2B quotation.
