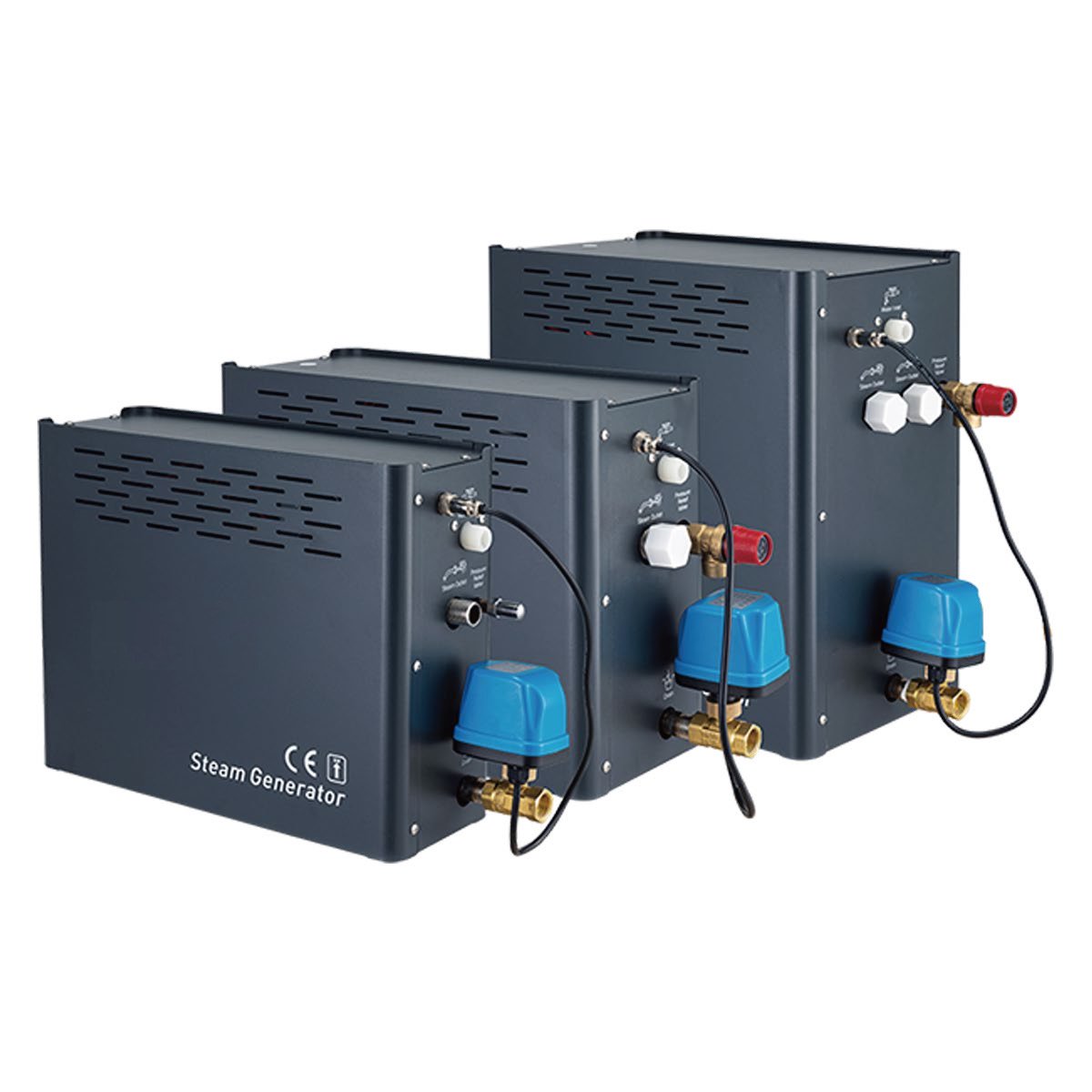

S6A Steam Generator Series with 6–22.5 kW Options
The S6A Steam Generator series is designed for steam-room projects and is available for retailers, distributors and project buyers.
The reviewed product range includes documented 6 kW, 9 kW, 12 kW, 15 kW and 22.5 kW configurations for different recommended steam-room volumes.
Documented steam output ranges from 180 ml/min to 550 ml/min depending on the selected model.
Model selection should be based on the actual steam-room volume, construction, electrical supply, controller configuration and project requirements.
Documented S6A Configurations
| Model | Power | Recommended Room Volume | Steam Output | Unit Dimensions |
|---|---|---|---|---|
| S6A-6KW | 6 kW | 5–8 m³ | 180 ml/min | 385 × 172 × 311 mm |
| S6A-9KW | 9 kW | 10–12 m³ | 260 ml/min | 385 × 172 × 311 mm |
| S6A-12KW | 12 kW | 14–16 m³ | 360 ml/min | 415 × 210 × 415 mm |
| S6A-15KW | 15 kW | 18–20 m³ | 450 ml/min | 415 × 210 × 415 mm |
| S6A-22.5KW | 22.5 kW | 24–26 m³ | 550 ml/min | 430 × 240 × 415 mm |
The specifications above apply only to the reviewed S6A configurations.
Final electrical requirements and supplied components should be confirmed for the selected model before ordering.
Power Selection and Steam-Room Sizing
Different S6A power configurations are intended for different recommended steam-room volume ranges.
The appropriate model should be selected according to the actual room size and overall project conditions rather than power rating alone.
Steam-room construction, insulation, surfaces, ventilation and other project conditions may affect heater selection.
Final sizing should therefore be confirmed according to the applicable technical documentation and project specification.
Control Panel and WIFI Options
The reviewed S6A product information shows both a control-panel option and a WIFI control-panel option.
Controller availability, functions and compatibility depend on the selected steam generator configuration.

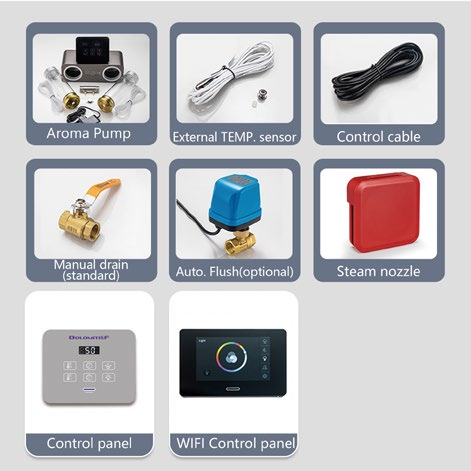

The reviewed system documentation also shows components including:
- External temperature sensor
- Control cable
- Steam nozzle
- Manual drain
- Optional automatic flushing
The final included components and optional equipment should be confirmed in the written quotation before ordering.
Electrical Configuration
Electrical configurations vary according to the selected S6A model.
The reviewed product information documents 230 V 1N~ and/or 400 V 3N~ arrangements depending on configuration.
Buyers should confirm the exact voltage, phase, cable, fuse and local electrical requirements for the selected unit.
Electrical installation and servicing should follow the applicable technical documentation and be performed by appropriately qualified personnel.
Steam Generator System Scope
The S6A series is part of Mai Sauna’s steam generator range for steam-room projects.
Water supply, drainage, steam-line routing, controller selection, sensor placement and electrical requirements depend on the selected model and installation environment.
Product images are visual references and do not guarantee that every pictured controller, sensor, nozzle, cable or optional component is included with every configuration.
Request a Quote
Contact Mai Sauna to confirm the required S6A Steam Generator model, room volume, power configuration, controller, electrical requirements, included components and current B2B quotation.
