Compact Sauna Heater for Wholesale Supply

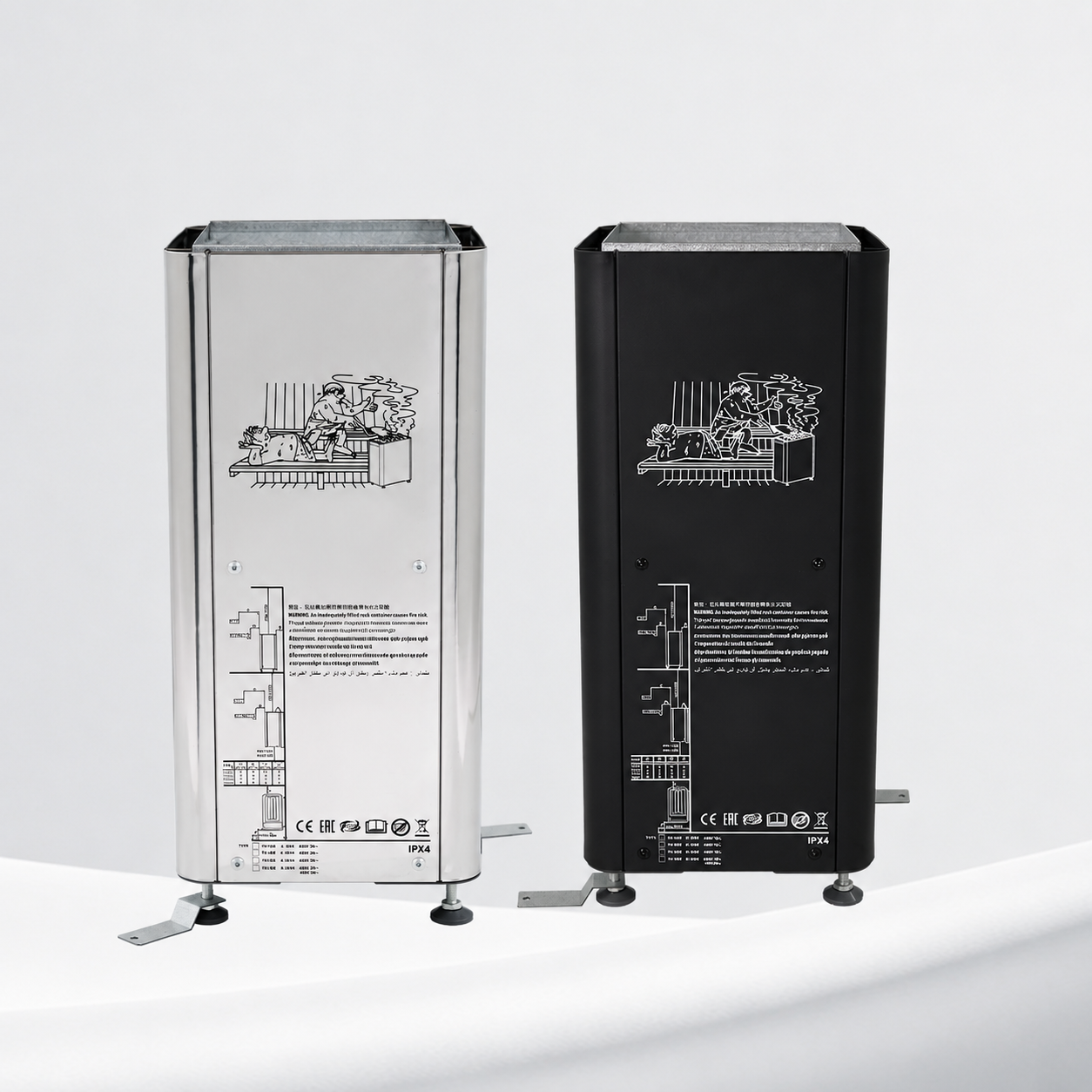

The Complex Mini-E Heater is a compact electric sauna heater offered for retailers, distributors and sauna project buyers. The documented configuration is rated at 3 kW for a recommended sauna-room volume of 2-4 m³.
Selection must be based on the actual sauna-room volume, construction, electrical supply, external controller, placement and local project requirements.
Documented Configurations
| Power configuration | Recommended room volume | Control arrangement |
|---|---|---|
| 3 kW | 2-4 m³ | External control |

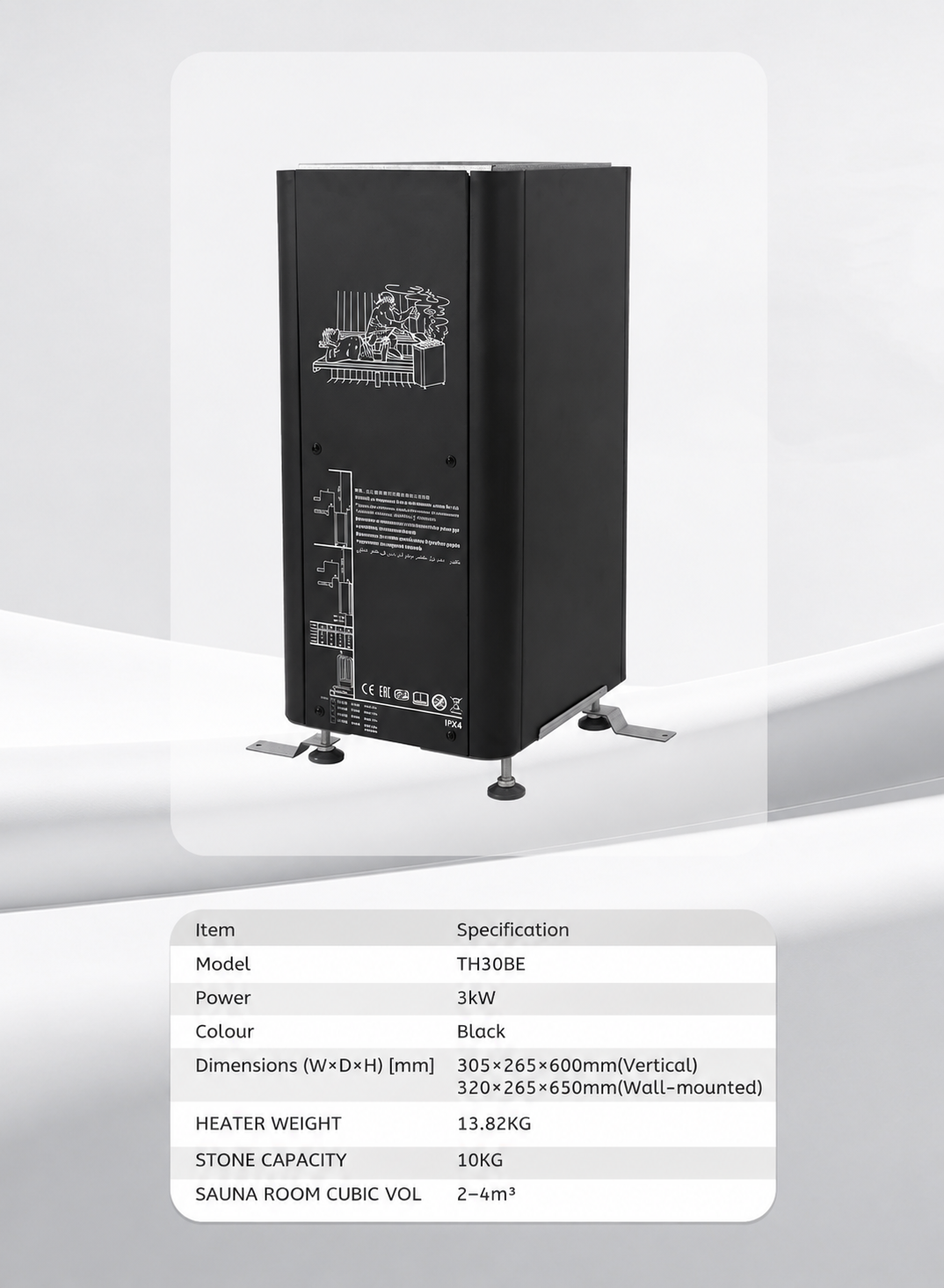

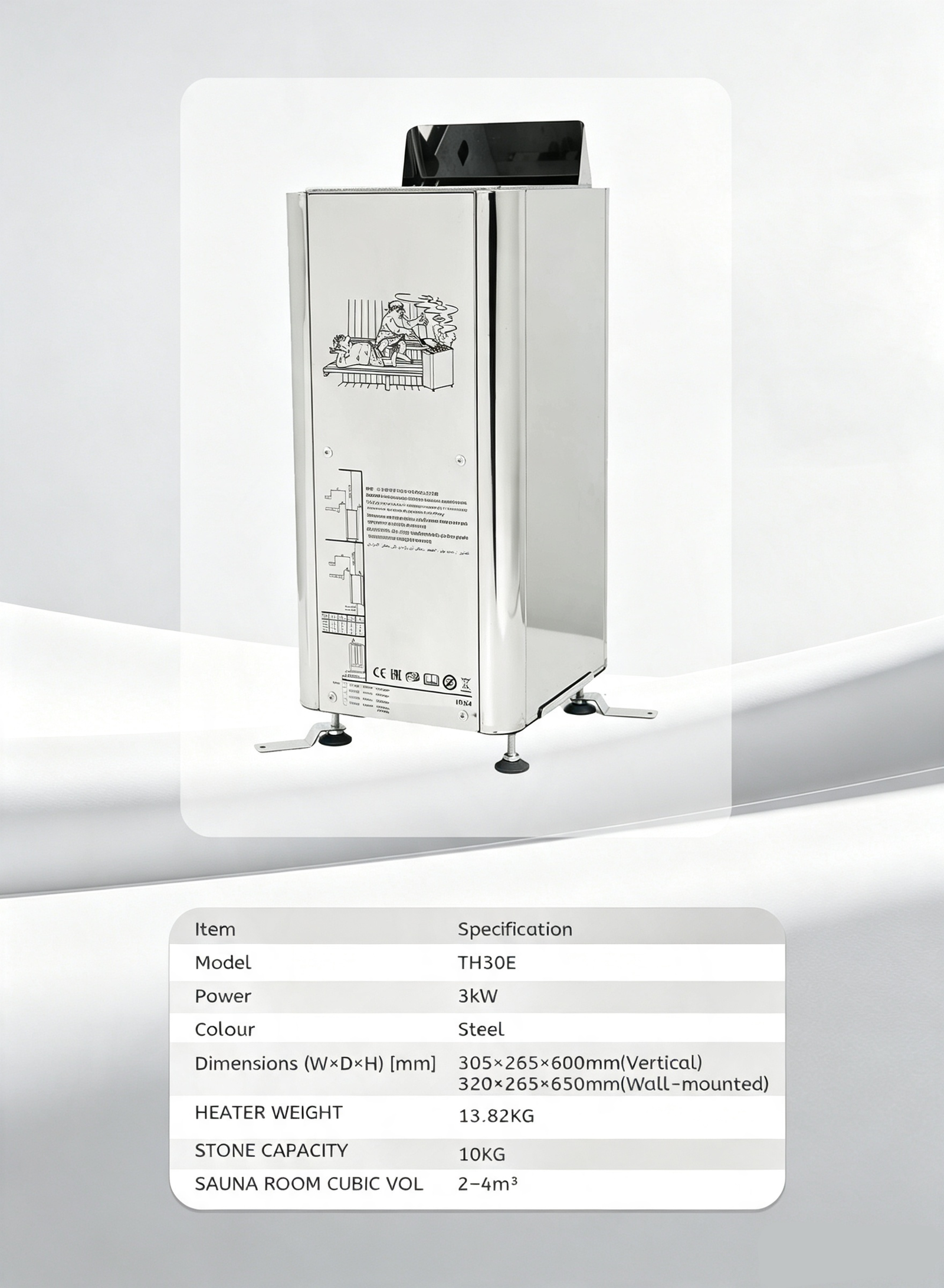

The documented vertical floor-standing arrangement measures 305 × 265 × 600 mm. The documented wall-mounted arrangement measures 320 × 265 × 650 mm. Heater weight is 13.82 kg and stone capacity is 10 kg. Black and steel color options are shown in the reviewed catalog.
External Control and Service Access
The documented Complex Mini-E configuration requires an external control unit. The reviewed catalog shows standard and Wi-Fi controller options. Controller supply, electrical rating and compatibility must be confirmed for the exact heater and project.

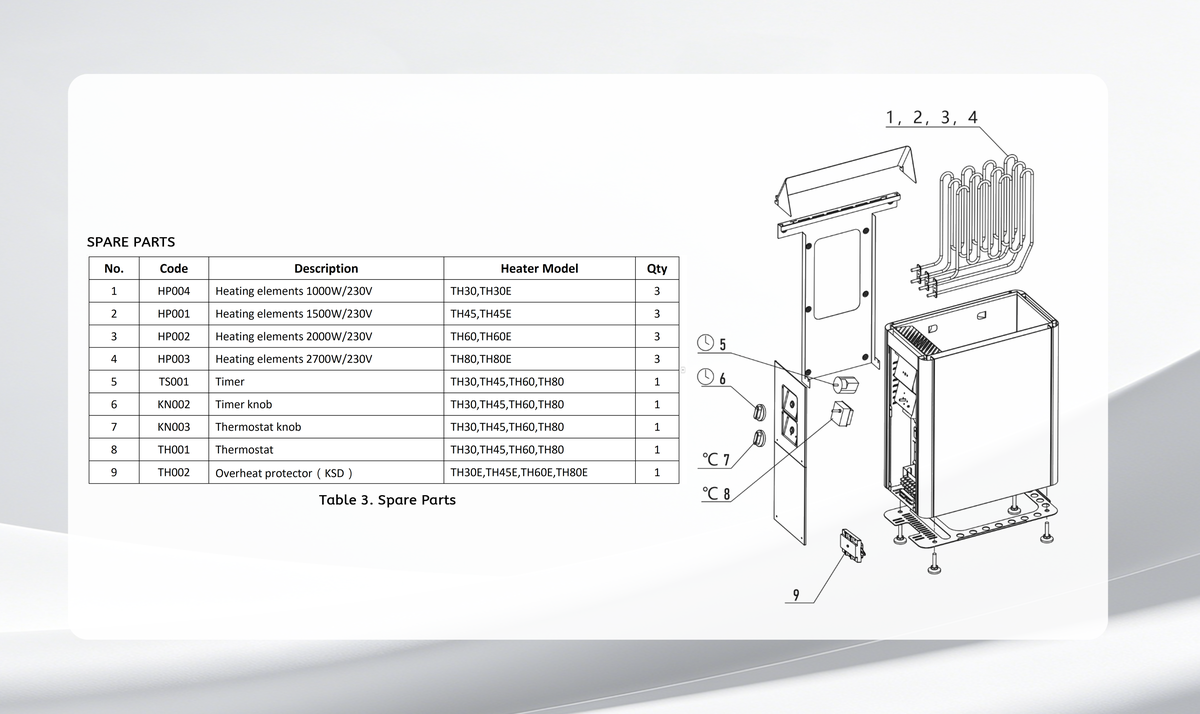

Inspection, servicing and component replacement must be performed according to the applicable technical documents by appropriately qualified personnel.
Product images are visual references. Sauna stones, controllers, installation components and other pictured items are included only when they are listed in the written quotation.
Placement and Safety Documentation

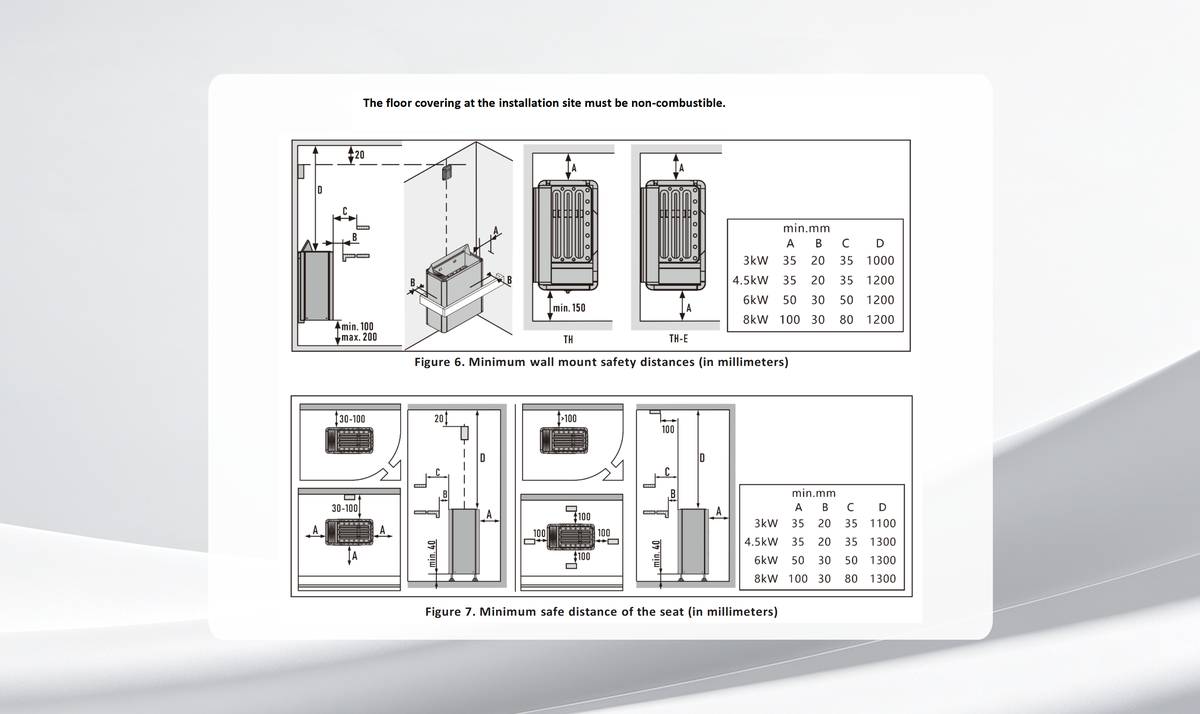

The product documentation shows floor-standing and wall-mounted arrangements, plus model-specific safety distances. A bench-embedded application is also shown for the floor-standing arrangement. Final placement, clearances and surrounding construction must follow the applicable model documentation and project requirements.
Project and Installation Boundaries
Room sizing, electrical supply, phase, controller selection, safety clearances, floor construction and installation requirements depend on the selected configuration and project. Use the applicable technical documentation and appropriately qualified installation personnel. This description is not an installation or service guide.
Order Confirmation
Before ordering, confirm the 3 kW configuration, recommended room volume, voltage and phase, external controller, placement, color, included components and current product specification in writing.
Request a Compact Sauna Heater Quote
Contact Mai Sauna to confirm the Complex Mini-E heater configuration, external controller, placement, included components, current specification and B2B quotation.
Product Reference Images
